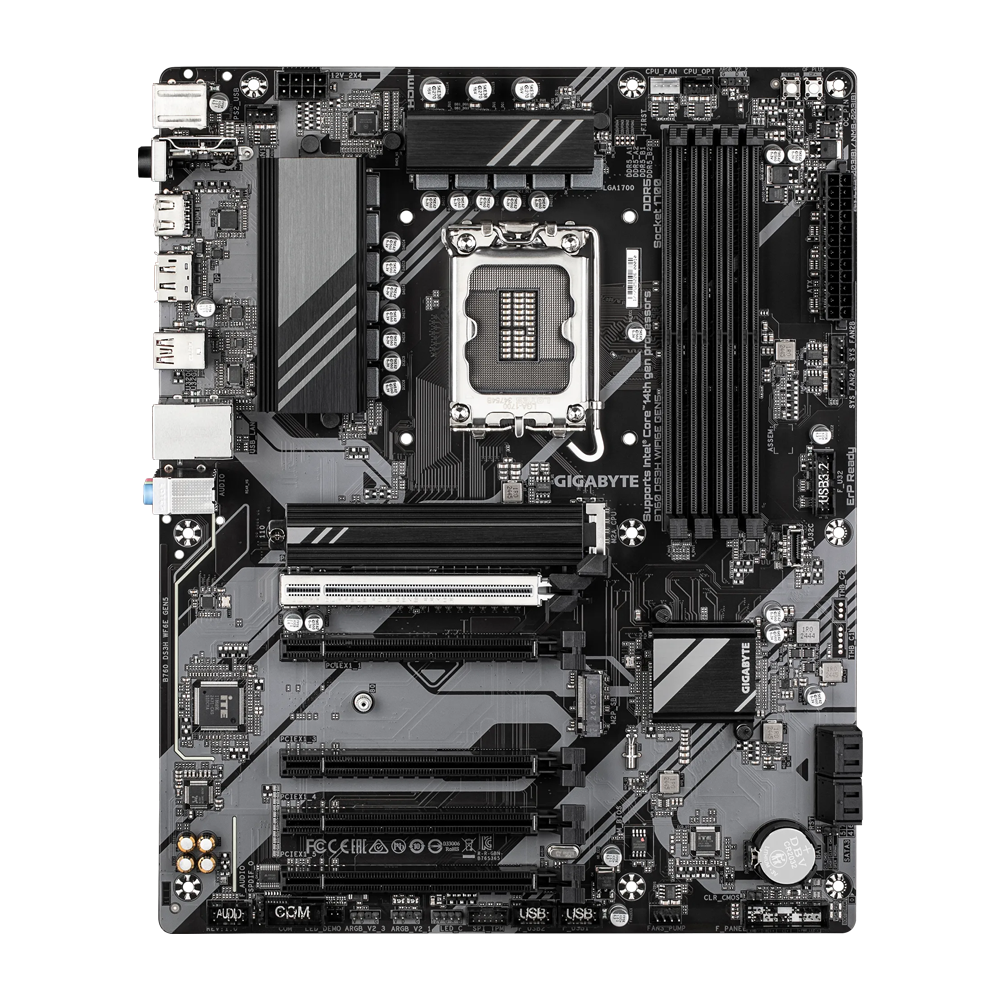

GIGBAYTE B760 DS3H WIFI6E GEN5 Gaming Motherboard - DDR5 / Wi-Fi / Bluetooth / HDMI / DisplayPort / USB - Black

Key Features: PCIe Gen5 Performance : Perfect Sync to Win Supports Intel® Core™ 14th/ 13th /12th processors WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support Fast Networks : GbE LAN & Wi-Fi 802.11ax Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card B760 DS3H WIFI6E GEN5 Express to PCIE5 Performance The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement. Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. PCIe UD Slot GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. 1.7X stronger shearing test 3.2X stronger retention force test Reduced Signal Degradation with SMD Technology UD Power Connector Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections VRM Thermal Durable VRM heatsinks keep your system cool and efficient. Smart Fan 6 Cool. Quiet. Customized. 2X Massive cooling surface Exceptional heat dissipation Hybrid VRM Design The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability. Unlock DDR5 Performance GIGABYTE is offering a tested and proven platform with extreme memory performance boost. DDR5 Overclocking Up to 7600 MT/s Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. GbE LAN with Bandwidth Management GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. WIFI EZ-Plug The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. WIFI Compass Features auto detection to help users find the best antenna position for stronger Wi-Fi signal. EZ-Latch Designs User-friendly designs simplifying the assembly process. PCIe EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. UC BIOS Redesigned UI and UX an intuitive operation interface with an aesthetically pleasing design. Quick Access 9 customizable option slots for effortless access in Easy Mode. PerfDrive exclusive BIOS settings that optimize the performance based on the cooling configuration Multi-key A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios. Q-FLASH PLUS Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU. RGB Fusion Personalize the RGB illumination on connected peripherals. Specifications CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel® B760 Express Chipset Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
