| Brand | APC |

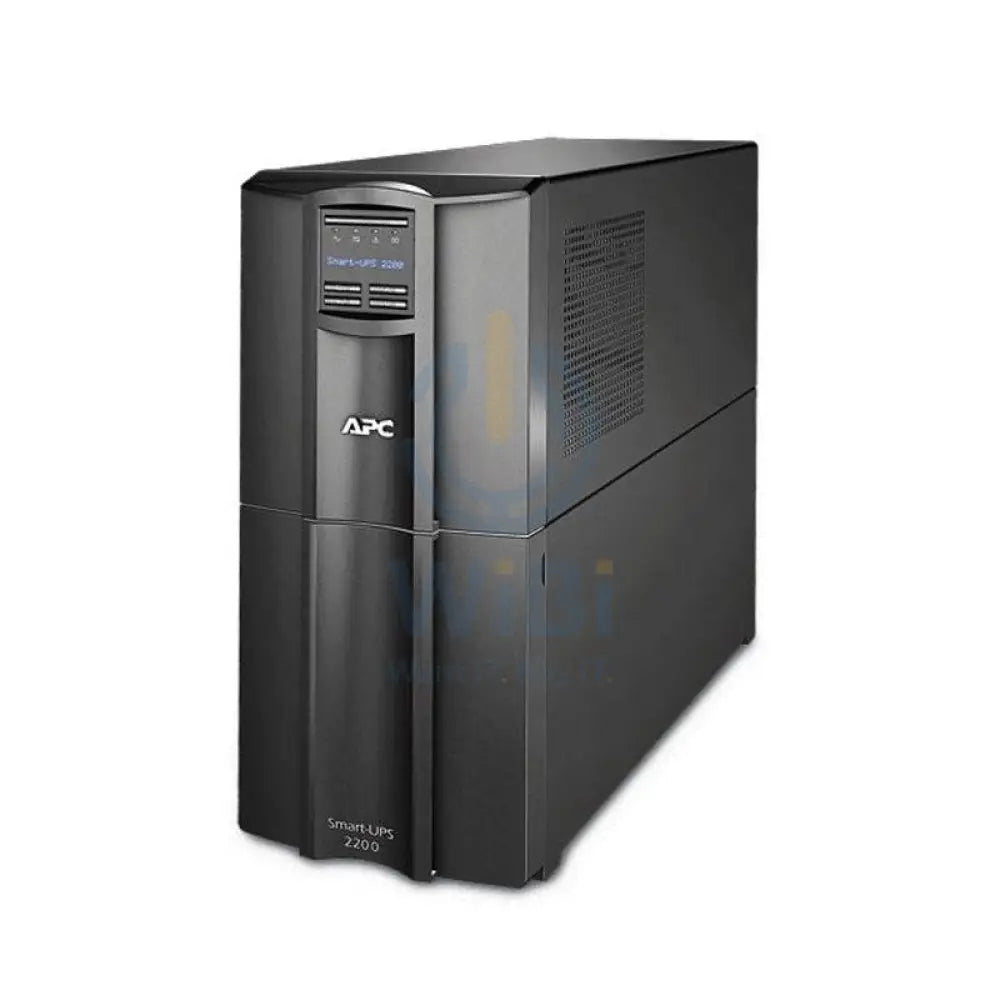

| Model | APC Smart-UPS 2200VA |
| Output Power Capacity | 1980 Watts / 2200 VA |
| Max Configurable Power | 1980 Watts / 2200 VA |
| Nominal Output Voltage | 230V |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
| Topology | Line Interactive |
| Waveform Type | Sine wave |

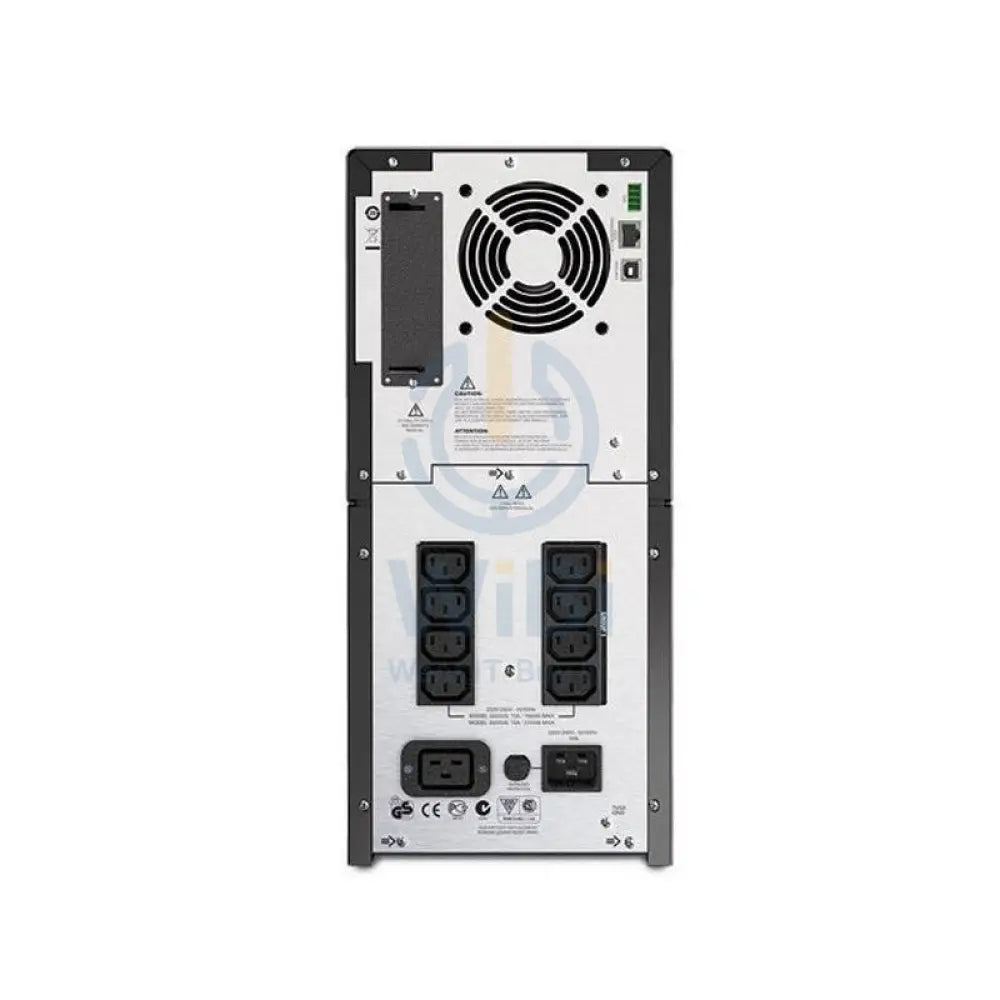

| Output Connections | 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers |
| Color | BlackĀ |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | IEC-320 C20Ā |
| Schuko CEE 7 / EU1-16PĀ | British BS1363AĀ |
| Input voltage range for main operations | 160 - 286V |
| Input voltage adjustable range for mains operation | 151 - 302V |
| Other Input Voltages | 220, 240 |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 3 hour(s) |
| Replacement Battery | RBC55 |
| RBCā¢ Quantity | 1 |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Available SmartSlotā¢ Interface Quantity | 1 |
| Smart Connect | Yes |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge energy rating | 365 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Operating Environment | 0 - 40 Ā°C |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-3000 meters |
| Storage Temperature | -15 - 45 Ā°C |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-15000 meters |
| Audible noise at 1 meter from surface of unit | 45.00 dBA |
| Online Thermal Dissipation | 275.00 BTU/hr |
| Regulatory Approvals | CE, EN 50091-1, EN 50091-2, VDE |
| Maximum Height | 435.00 mm |
| Maximum Width | 197.00 mm |
| Maximum Depth | 544.00 mm |
| Net Weight | 48.80 KG |
| Warranty | One Year |
