| Brand |
Intel |
| Model |

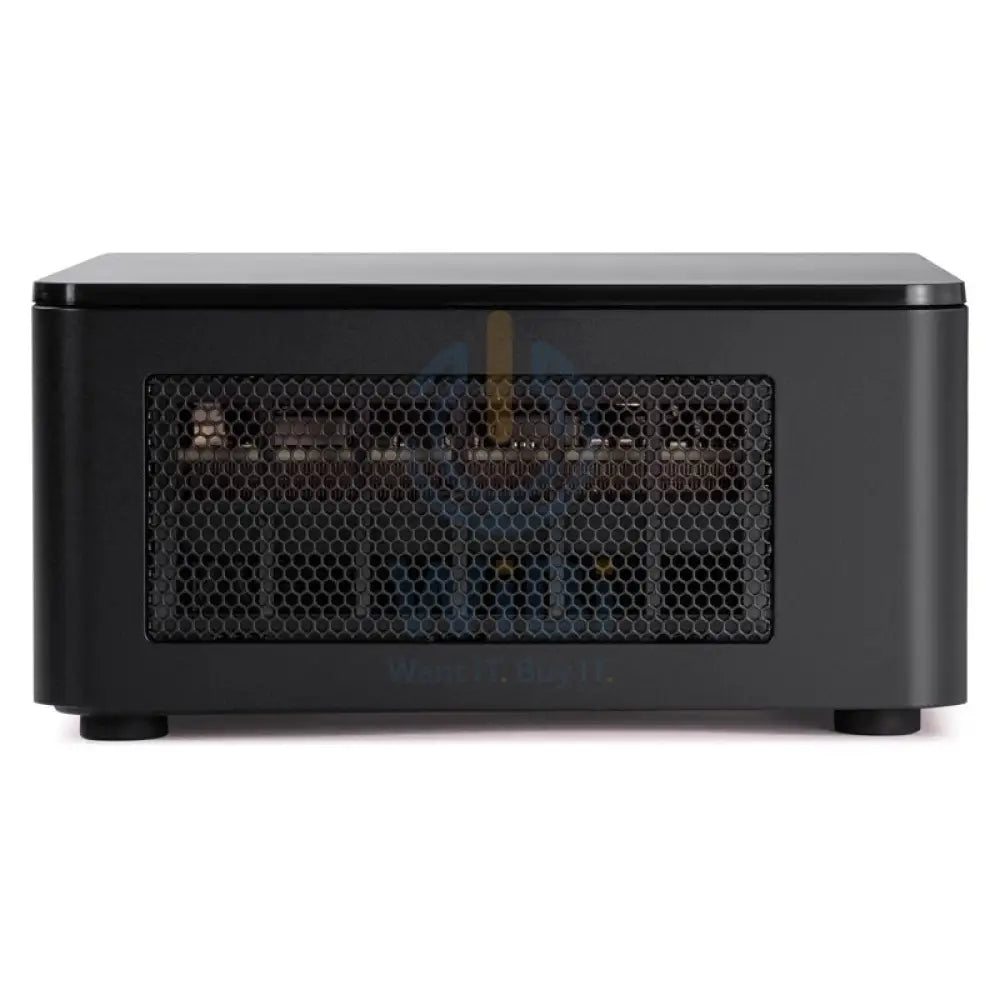

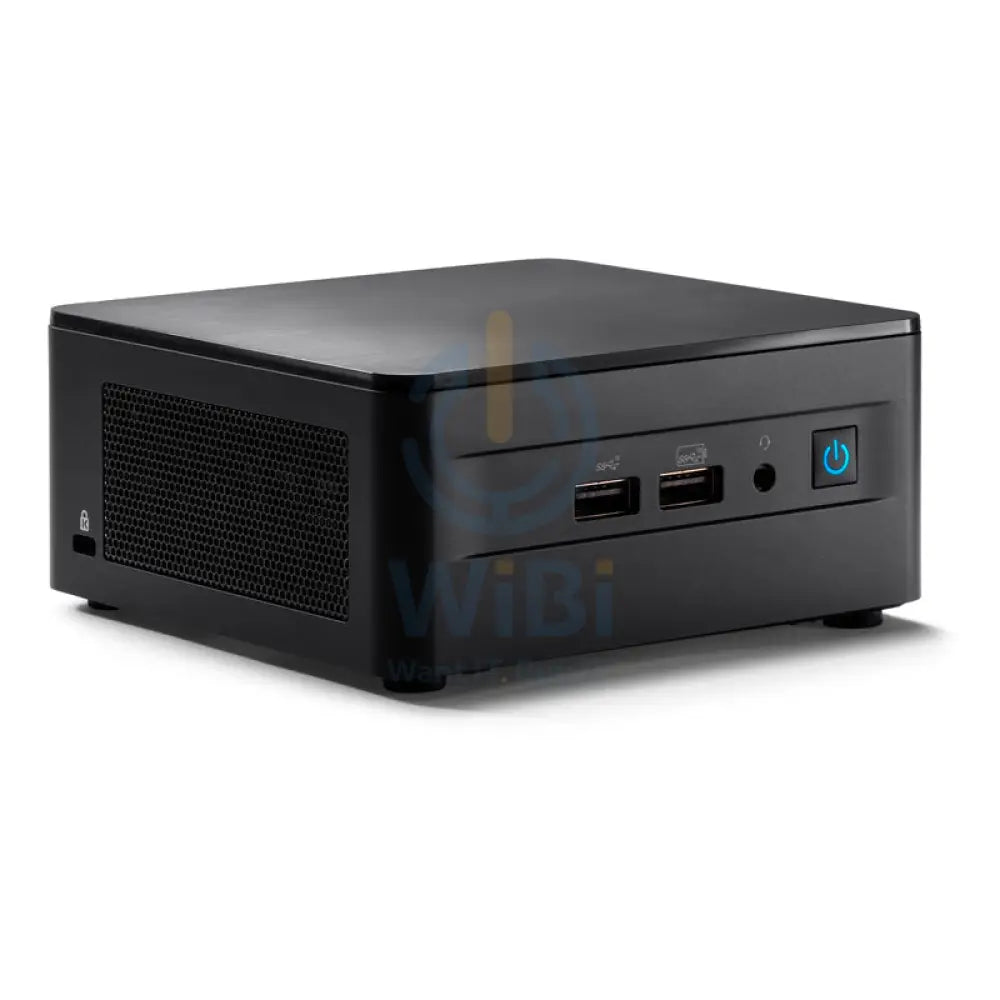

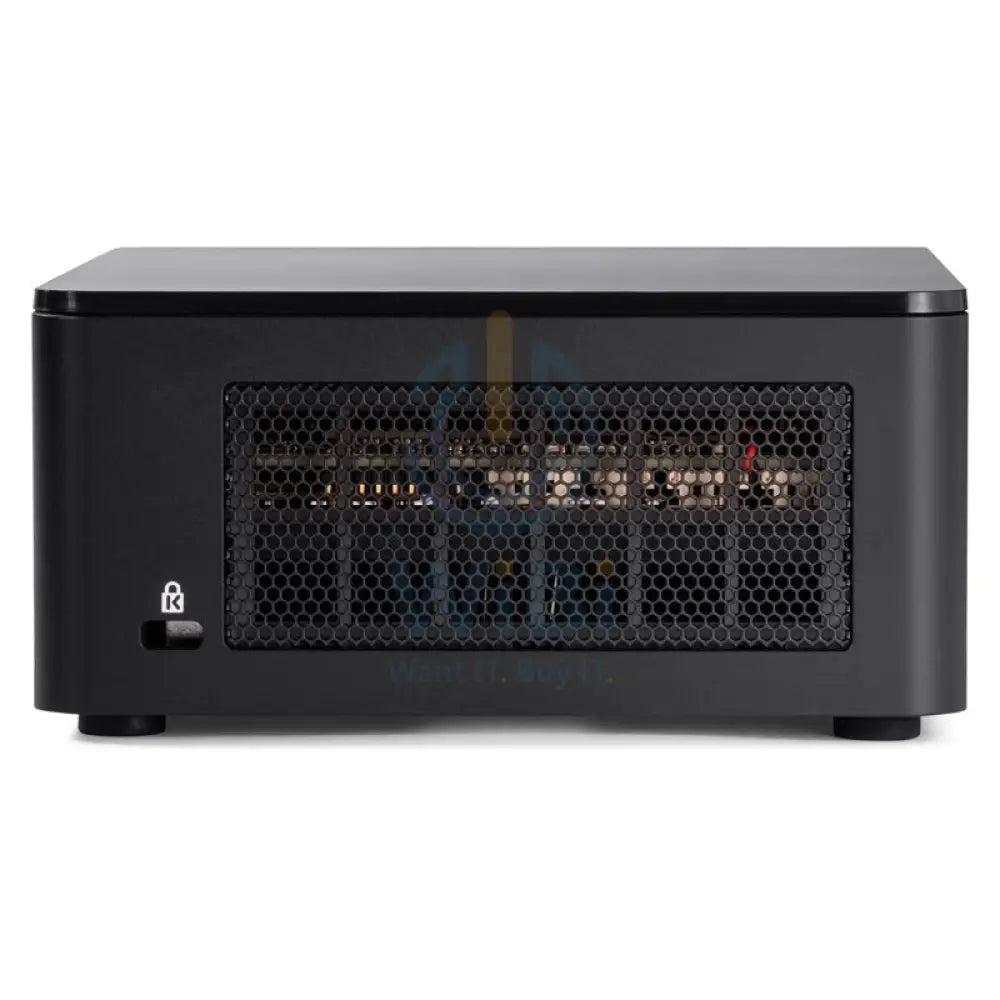

Intel® NUC 12 Pro Kit NUC12WSHi5 |
| Product Type |
Intel® NUC Kit with 12th Generation Intel® Core™ Processors - PC Barebone |
| Product Form Factor |
Tall Chassis |
| Processor |
Intel® Core™ i5-1240P P-Core 1.70GHz, E-Core 1.20GHz 12M Cache ((4 P-Cores + 8 E-Cores) 12-Cores, Up to P-Core 4.40GHz, E-Core 3.30GHz) Processor |
| Processor Main Features |
Intel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT) |
| Memory Installed |
16GB RAM |
| Max Memory Size (Dependent on Memory Type) |
64 GB |
| Memory Types |
DDR4-3200 1.2V SODIMMs |
| Max No. of Memory Channels |
2 |
| Max No. of DIMMs |
2 |
| ECC Memory Supported |
No |
| Internal Drive |
500GB SSD |
| Internal Drive Form Factor |
M.2 NVMe and 2.5" Drive |
| Total No. of SATA Ports |
1 |
| No. of Internal Drives Supported |
Three |
| Optical Drive |
None |
| Operating System Installed |
Microsoft Windows 11 Professional (OEM) |
| Operating Systems Supported |
Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro, Red Hat Linux, Ubuntu 20.04 LTS |
| Integrated Graphics |
Yes |
| Graphics |
Intel® Iris® Xe Graphics |
| Graphics Output |
2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type-C |
| No. of Displays Supported |
Four |
| Audio (Back Channel + Front Channel) |

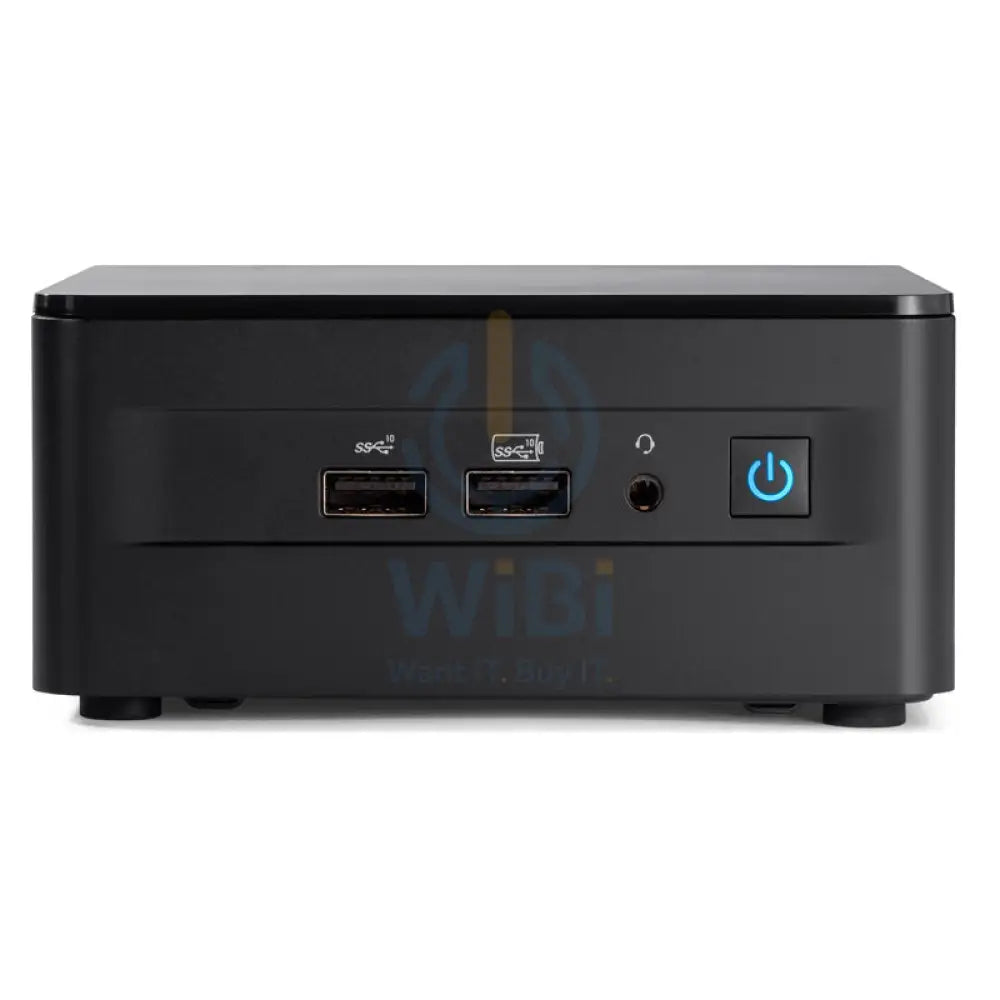

Front Panel: 3.5mm Headphone/Mic Jack |
| Integrated LAN |
Intel® Ethernet Controller i225-V |
| Integrated Wireless |
Intel® Wi-Fi 6E AX211(Gig+) |
| Integrated Bluetooth |
Yes |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2 |
| PCI Express Configurations |
PCIe x4 Gen 4: M.2 22x80, PCIe x1 Gen 3: M.2 22x42, PCIe x1: M.2 22x30 |
| Interfaces |

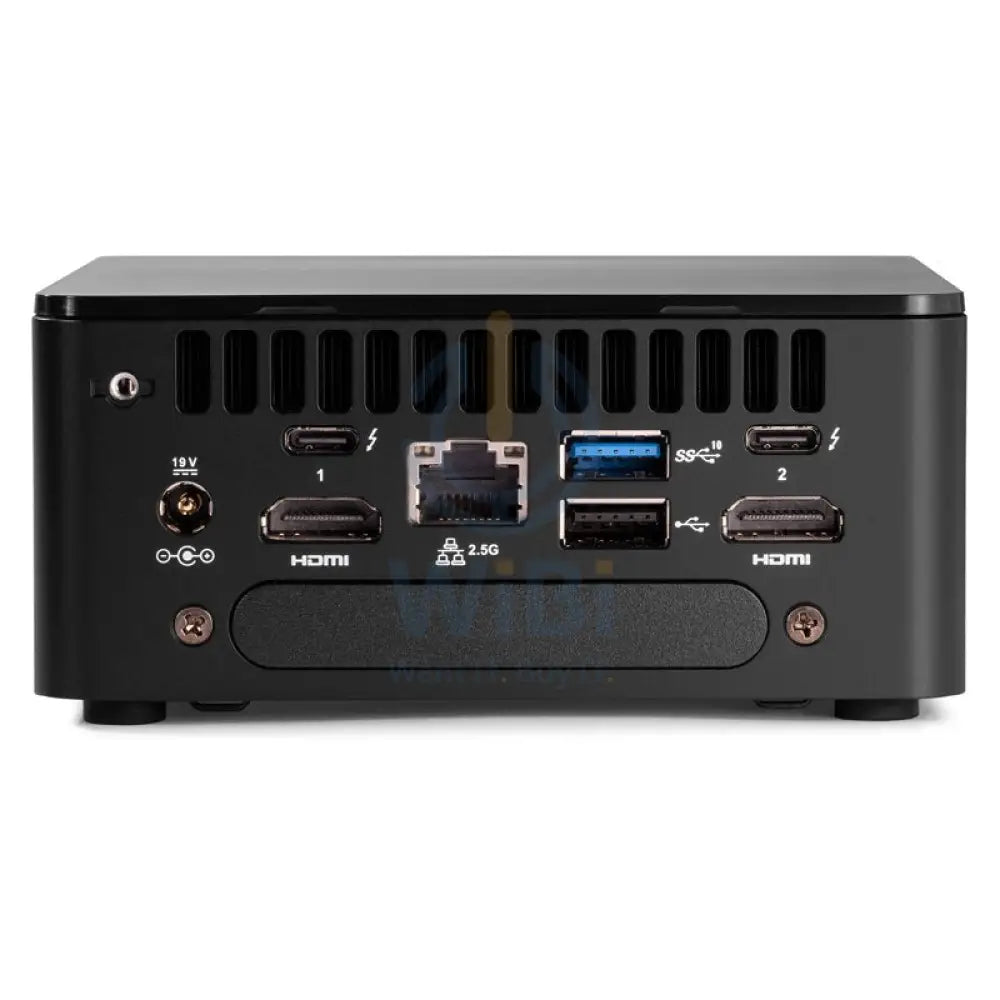

2 x Thunderbolt™ 4/USB4/DisplayPort 1.4 - Type C, 3 x USB 3.2 Gen 2 - Type A (2 Front, 1 Rear), 2 x USB 2.0 - Header (2 Internal), 1 x USB 2.0 - Type A (1 Rear), 1 x LAN (2.5Gigabit Ethernet) - RJ-45, 2 x HDMI, 1 x Headphones/Microphone - Stereo Mini-Jack |
| Power |
No Power Supply |
| Dimensions (W x D x H) |
117 x 112 x 54 mm |
| Remarks |
This Product is Upgraded from Manufacturers Specification. |
| Warranty |
One Year |
