One Year Brand Warranty
| Brand | Intel |

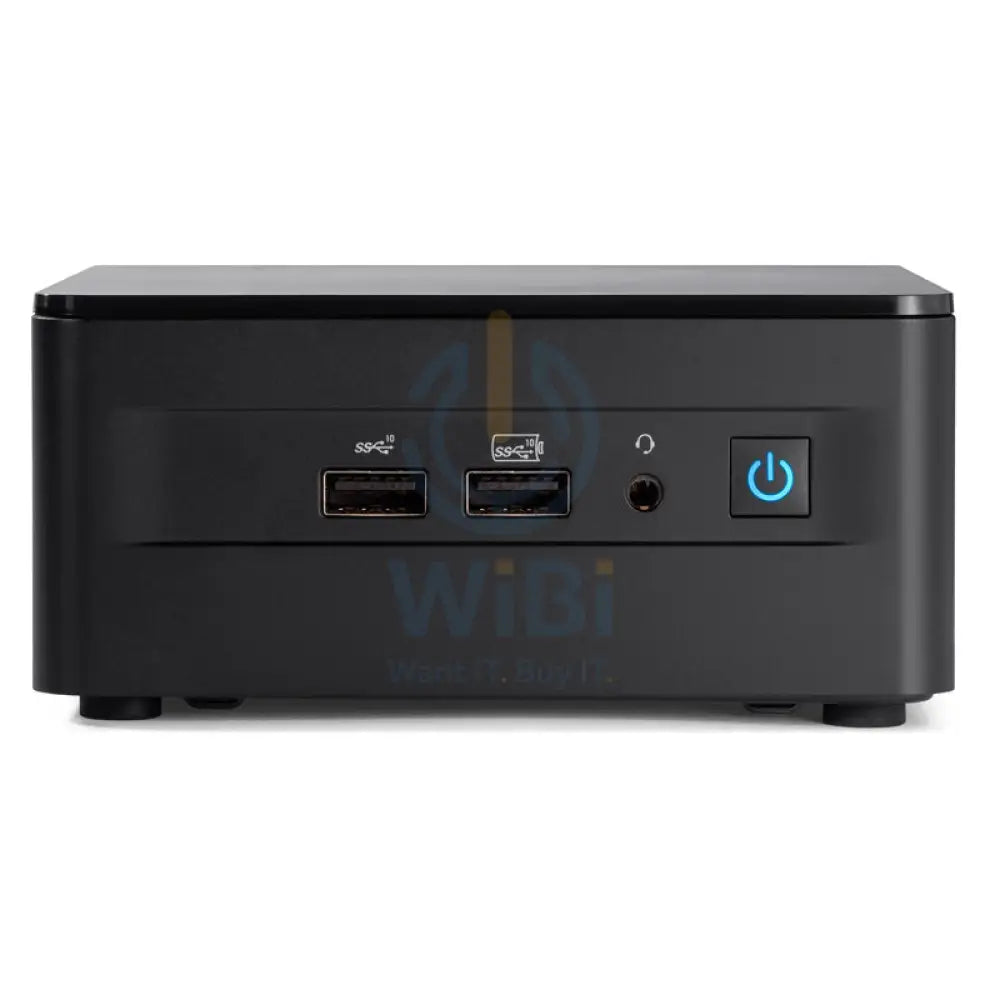

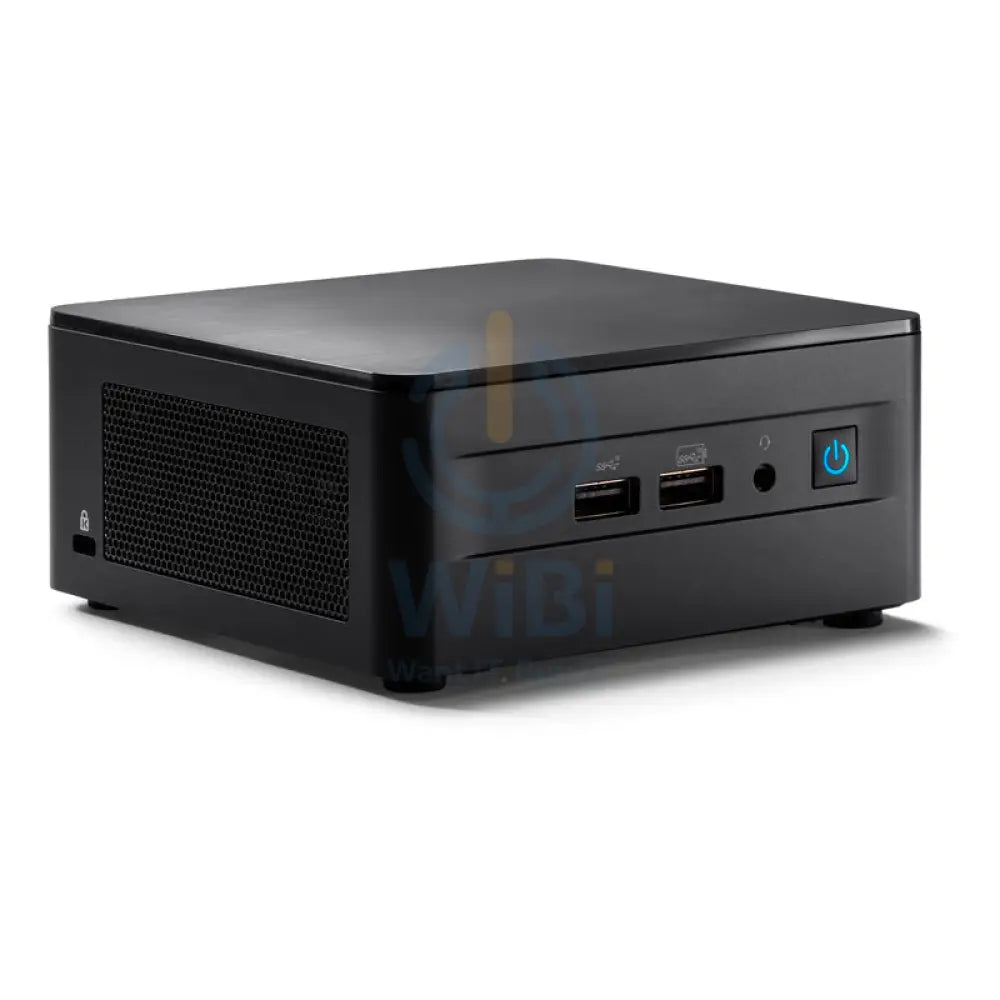

| Model | Intel® NUC 12 Pro Kit NUC12WSHi7 |
| Product Type | Intel® NUC Kit with 12th Generation Intel® Core™ Processors - PC Barebone |
| Product Form Factor | Tall Chassis |
| Processor | Intel® Core™ i7-1260P P-Core 2.10GHz, E-Core 1.50GHz 18M Cache ((4 P-Cores + 8 E-Cores) 12-Cores, Up to P-Core 4.70GHz, E-Core 3.40GHz) Processor |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT) |
| Memory Installed | 64B RAM |
| Max Memory Size (Dependent on Memory Type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max No. of Memory Channels | 2 |
| Max No. of DIMMs | 2 |
| ECC Memory Supported | No |
| Internal Drive | 250GB SSD |
| Internal Drive Form Factor | M.2 NVMe and 2.5" Drive |
| Total No. of SATA Ports | 1 |
| No. of Internal Drives Supported | Three |
| Optical Drive | None |
| Operating System Installed | Microsoft Windows 10 Professional (OEM) |
| Operating Systems Supported | Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro, Red Hat Linux, Ubuntu 20.04 LTS |
| Integrated Graphics | Yes |
| Graphics | Intel® Iris® Xe Graphics |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type-C |
| No. of Displays Supported | Four |
| Audio (Back Channel + Front Channel) | Front Panel: 3.5mm Headphone/Mic Jack |
| Integrated LAN | Intel® Ethernet Controller i225-V |
| Integrated Wireless | Intel® Wi-Fi 6E AX211(Gig+) |
| Integrated Bluetooth | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2 |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80, PCIe x1 Gen 3: M.2 22x42, PCIe x1: M.2 22x30 |

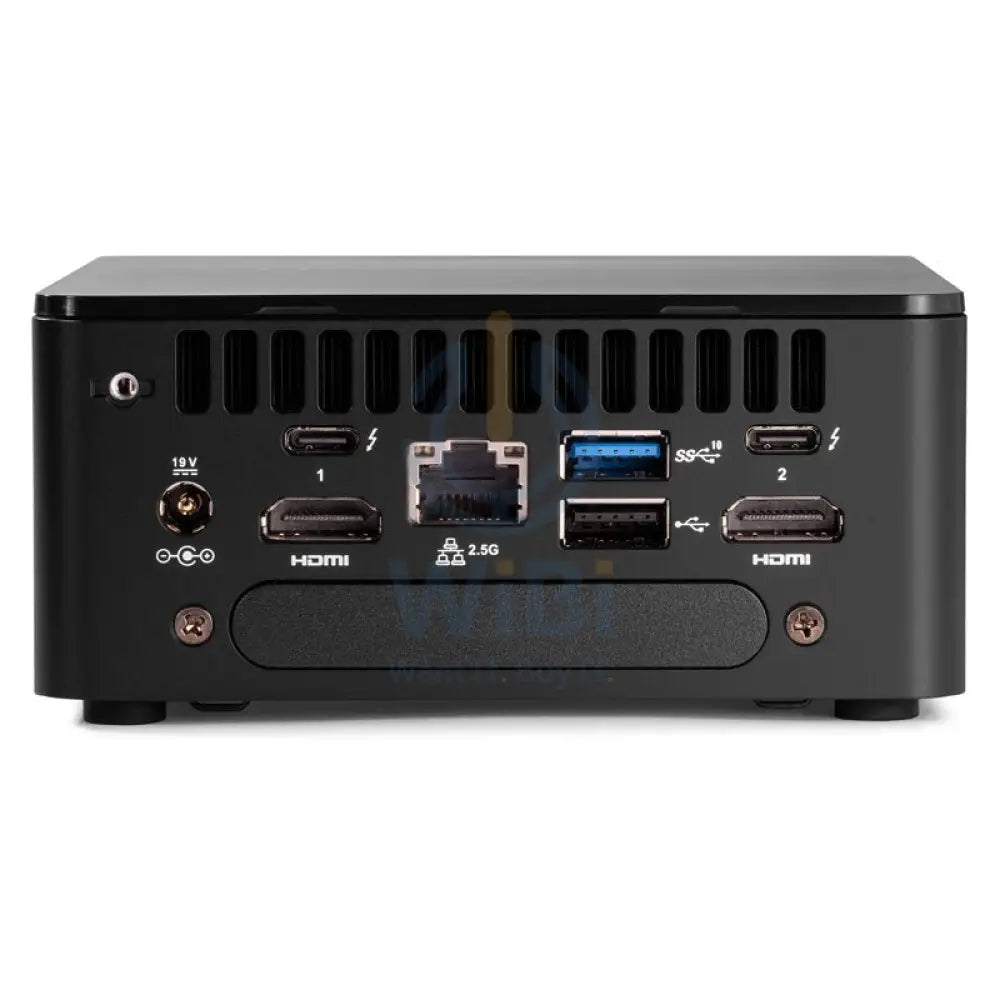

| Interfaces | 2 x Thunderbolt™ 4/USB4/DisplayPort 1.4 - Type C, 3 x USB 3.2 Gen 2 - Type A (2 Front, 1 Rear), 2 x USB 2.0 - Header (2 Internal), 1 x USB 2.0 - Type A (1 Rear), 1 x LAN (2.5Gigabit Ethernet) - RJ-45, 2 x HDMI, 1 x Headphones/Microphone - Stereo Mini-Jack |
| Power | No Power Supply |
| Dimensions (W x D x H) | 117 x 112 x 54 mm |
| Remarks | This Product is Upgraded from Manufacturers Specification. |
| Warranty | One Year |
