| Brand |
Linksys |
| Model |

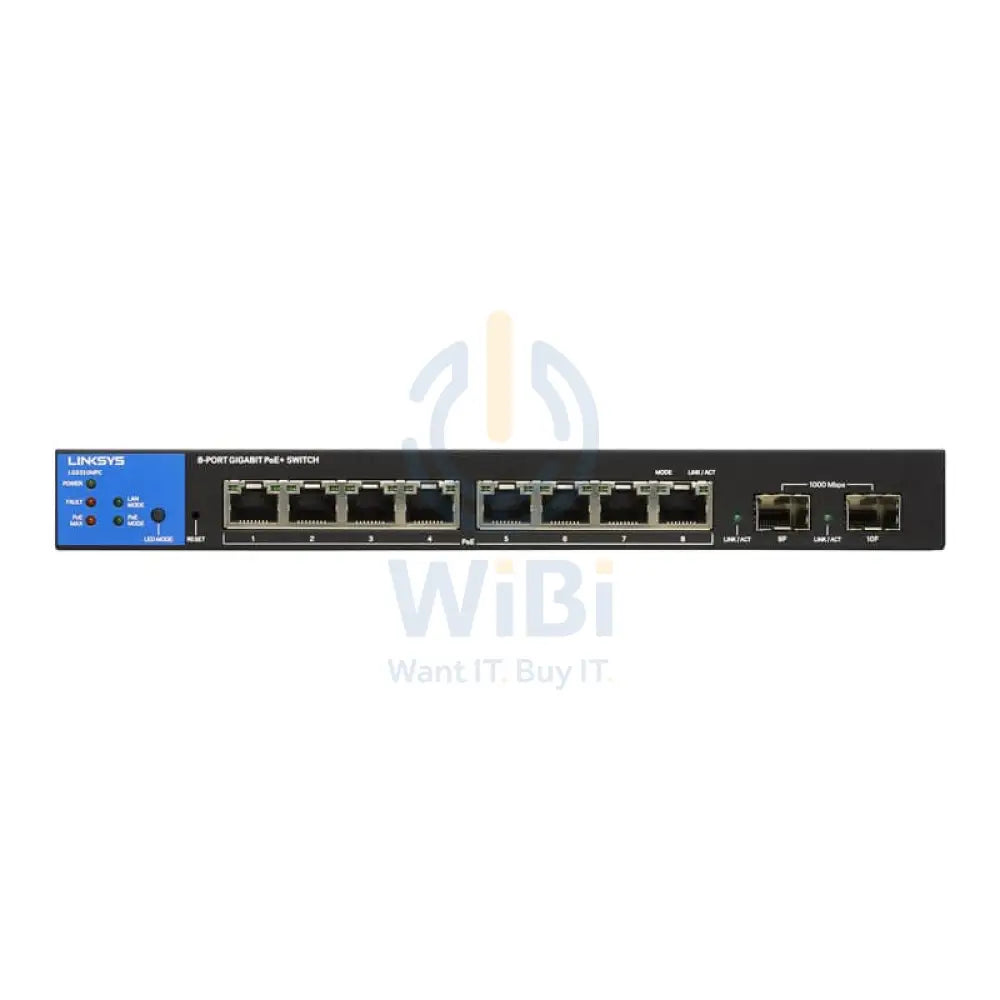

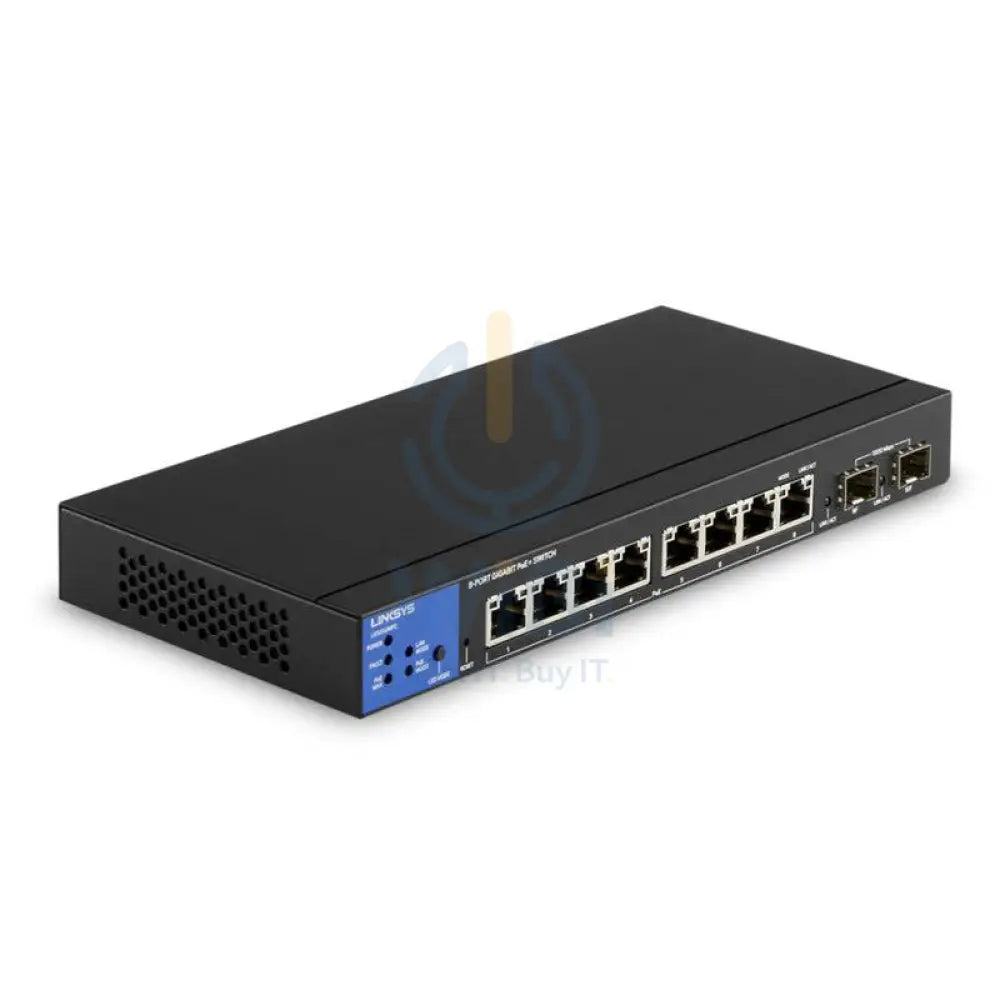

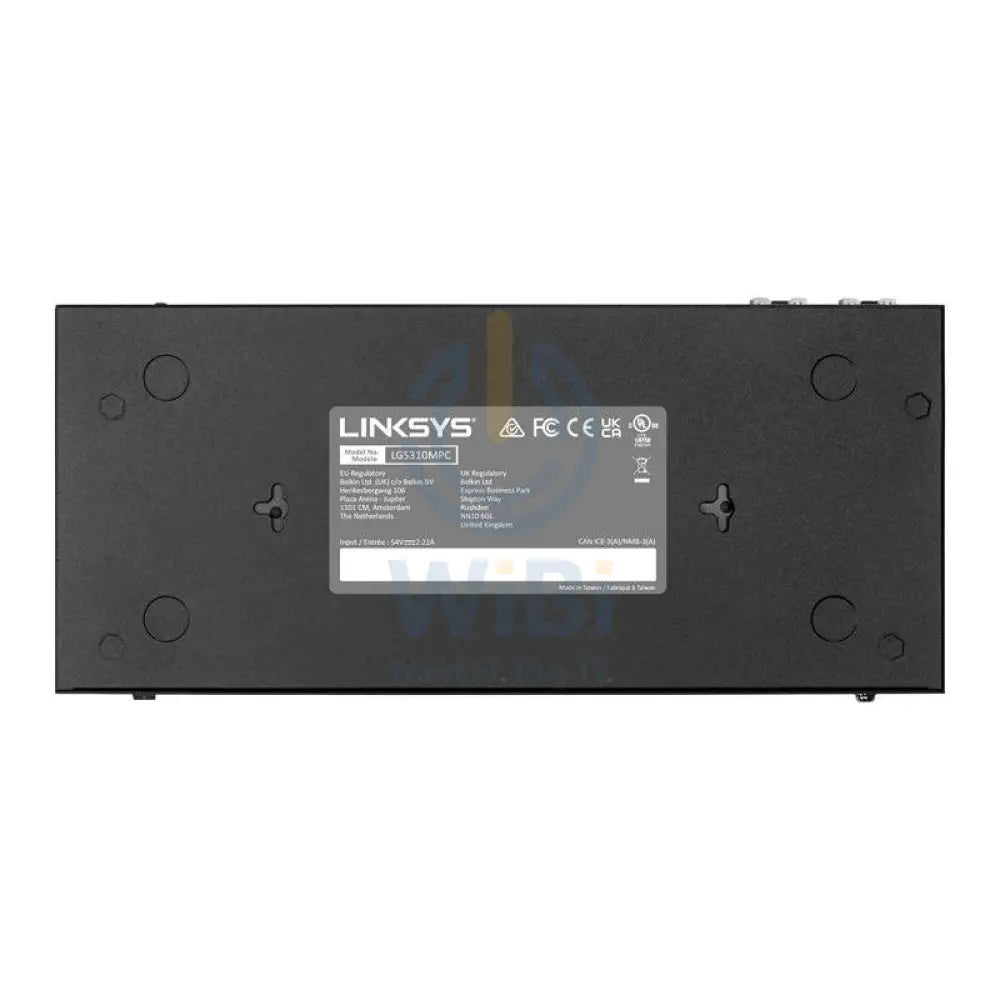

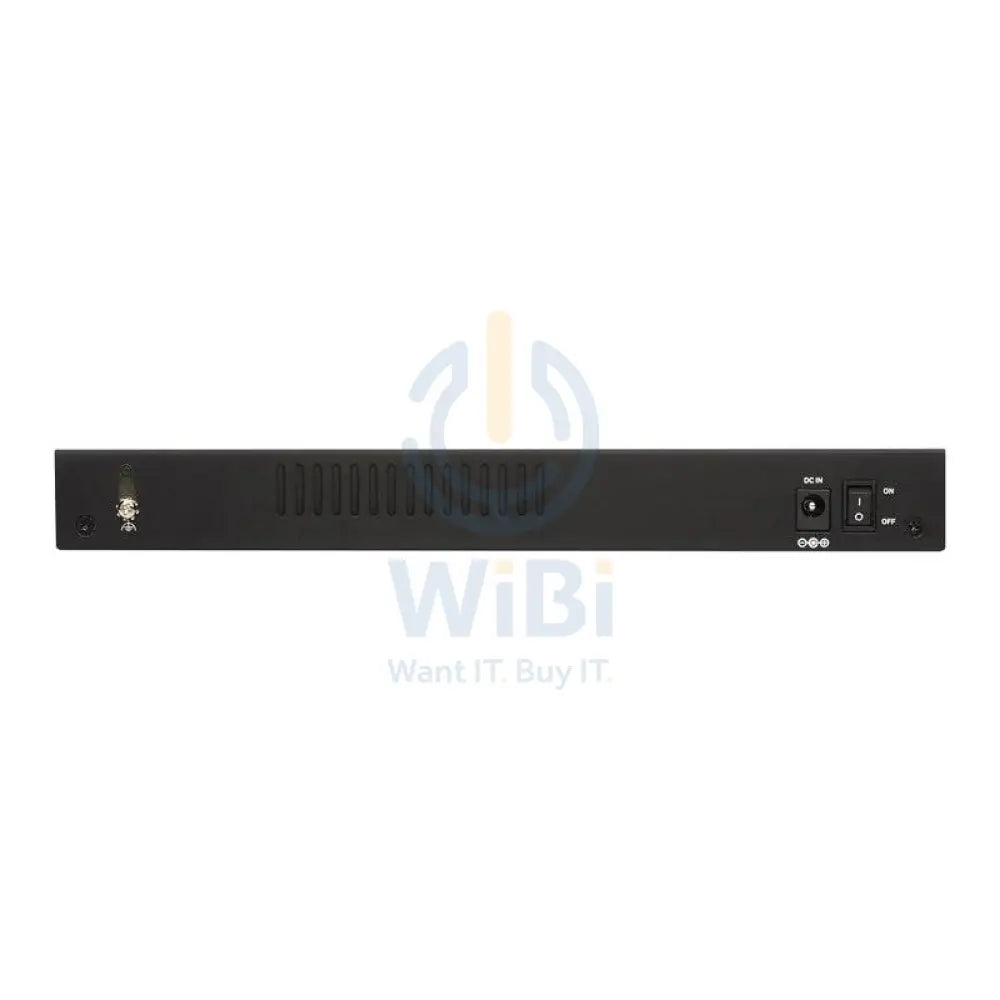

Linksys LGS310MPC |
| Device Type |
Switch - 8 Ports - Managed |
| Enclosure Type |
Desktop |
| Subtype |
Gigabit Ethernet |
| Ports |
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
110 W |
| Performance |
Switching Capacity: 20 Gbps, Forwarding Performance: 14.88 Mpps |
| Capacity |
Active VLANs: 256, Link Aggregation Groups: 8, VLANs Supported: 4096 |
| MAC Address Table Size |
8K Entries |
| Jumbo Frame Support |
10000 bytes |
| Routing Protocol |
IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, DHCP |
| Authentication Method |
RADIUS |
| Features |
Port Mirroring, IPv6 Support, Spanning Tree Protocol (STP) Support, DHCP Snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) Support, Quality of Service (QoS), MLD Snooping, IPv4 Support, Fanless, DHCP Relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC Binding, Static Routing, 802.1x Authentication, Storm Control, Voice VLAN, VLAN Management, Guest VLAN, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, Port-Based QoS, DSCP Based QoS, Adaptive Rate Limiting (ARL), MLD Querier, IGMP Support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM |
256 MB |
| Status Indicators |
Power, LAN, Fault, PoE Level, PoE Max |
| Interfaces |
8 x 1000Base-T RJ-45 PoE+, 2 x Gigabit LAN SFP |
| Voltage Required |
AC 100/240 V (50/60 Hz) |
| Power Consumption |
133.77W |
| Electric Current Required |
2.2 A |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% RH |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 95% RH (Non-Condensing) |
| Dimensions (W x D x H) |
240 x 105 x 27 mm |
| Weight |
636 g |
| Warranty |
One Year |
